A choke manifold is an essential component in the oil and gas industry, particularly in well control operations. It plays a crucial role in managing and controlling the pressure in a well, ensuring safety and preventing blowouts during drilling, completion, or well intervention processes. In this article, we will explore the purpose of a choke manifold, how it functions, and its importance in maintaining the integrity of oil and gas wells.
In the oil and gas industry, managing the pressure in the wellbore is of utmost importance. The subsurface environment can generate extremely high pressures, and when fluids such as oil, gas, or water are extracted from the earth, controlling this pressure becomes crucial to avoid dangerous blowouts, which can cause significant damage to equipment, personnel, and the environment.
A choke manifold is specifically designed to regulate well pressure and ensure that drilling operations proceed smoothly and safely. It is used in both onshore and offshore drilling operations, playing a pivotal role in well control situations such as kicks (an influx of formation fluid into the wellbore) and in controlling the flow of hydrocarbons.

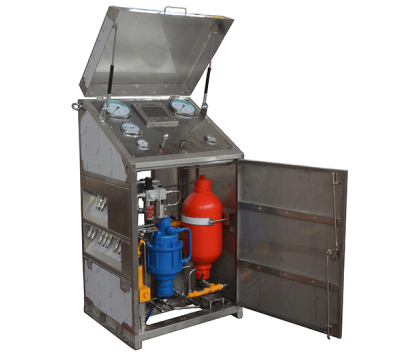

A choke manifold is a system of valves, gauges, and chokes (or orifices) that is connected to the wellbore during drilling or well servicing operations. It allows operators to control the pressure within the well by manually or automatically adjusting the flow of fluids through the system. By controlling this flow, the choke manifold helps to maintain wellbore stability and prevent dangerous pressure build-ups.
Typically, a choke manifold consists of the following components:
Adjustable Chokes: These are key elements that control the flow rate of fluids. They are adjustable to vary the orifice size, allowing operators to regulate wellbore pressure.
Valves: The manifold includes gate valves that isolate various sections of the manifold, providing flexibility in directing flow through different choke lines.
Pressure Gauges: Pressure monitoring devices ensure that operators can observe real-time pressure levels within the manifold system.
Crossover Lines: These allow fluids to be rerouted as needed to maintain optimal pressure and flow.
The primary purpose of a choke manifold is to control the pressure within the wellbore during various stages of oil and gas production. It is essential for regulating the flow of fluids and preventing blowouts, which can occur when the pressure inside the well becomes unmanageable. Below are the key functions of a choke manifold:
1. Pressure Management During Kicks
A "kick" refers to the unintentional influx of formation fluids (oil, gas, or water) into the wellbore. This can occur when the pressure in the formation exceeds the hydrostatic pressure exerted by the drilling mud. If a kick is not controlled, it can lead to a blowout, which can have catastrophic consequences.
The choke manifold is used to circulate heavier drilling mud into the well while controlling the pressure. By adjusting the chokes, operators can reduce the flow of formation fluids while increasing the density of the drilling mud to regain control over the wellbore pressure.
2. Well Testing
During well testing, choke manifolds are used to control the flow of hydrocarbons (oil or gas) from the well to the surface. The manifold allows operators to adjust the flow rates to determine the well's productivity, as well as gather data on the reservoir's pressure and characteristics. It plays a critical role in ensuring that the testing is performed safely, without causing excessive pressure fluctuations.
3. Well Cleanup
After drilling or completing a well, a cleanup process is required to remove debris, drilling fluids, and completion fluids from the wellbore. A choke manifold is used during this process to carefully control the flow of fluids out of the well. The ability to regulate flow ensures that the cleanup is performed efficiently without causing damage to the well or the environment.
4. Maintaining Wellbore Stability
When drilling or servicing a well, it is crucial to maintain stability in the wellbore to avoid collapse or formation damage. By regulating the flow of fluids through the choke manifold, operators can keep the wellbore pressure in balance with the surrounding formation pressure, ensuring that the well remains structurally sound.
5. Hydraulic Fracturing Operations
In hydraulic fracturing (fracking) operations, a choke manifold is used to control the pressure of the fracturing fluids being pumped into the well. Maintaining the correct pressure is critical for creating fractures in the rock formation and optimizing the extraction of hydrocarbons. The manifold helps to manage the flow rates and pressure to prevent equipment damage and ensure the safety of the operation.
There are two main types of chokes used in choke manifolds: adjustable chokes and positive (or fixed) chokes.
1. Adjustable Chokes
Adjustable chokes are designed to allow operators to manually control the flow of fluids by varying the size of the orifice. These chokes provide flexibility in adjusting flow rates and pressure, which is especially useful during dynamic operations like well control and testing.
2. Positive Chokes
Positive chokes, also known as fixed chokes, have a set orifice size that cannot be adjusted. They are typically used in situations where the flow rate and pressure are stable and do not require frequent adjustments. These chokes are often employed in production operations to maintain a constant flow of fluids from the well.
The choke manifold is a critical safety component in well control operations. Without it, operators would have limited means to manage pressure surges or kicks, increasing the risk of blowouts. By providing precise control over wellbore pressure, choke manifolds allow for safer and more efficient drilling operations. They ensure that pressure remains within manageable levels, protecting personnel, equipment, and the environment from potentially hazardous situations.
In addition to controlling well pressure during drilling, choke manifolds are also integral to the safe flowback of fluids after hydraulic fracturing and during well testing. The ability to adjust flow rates and pressure in real time makes the choke manifold an invaluable tool in the oil and gas industry.
The purpose of a choke manifold is to control wellbore pressure and regulate the flow of fluids during various stages of oil and gas production. From managing kicks and preventing blowouts to ensuring safe well testing and cleanup, the choke manifold plays a vital role in well control and safety. Its ability to provide precise pressure regulation is crucial for maintaining the stability and integrity of the wellbore, ultimately contributing to the success and safety of drilling operations. Whether used in drilling, hydraulic fracturing, or production, the choke manifold is an indispensable piece of equipment in the oil and gas industry.
