Blowout preventers and choke manifolds are two of the most important systems in pressure control during drilling operations. These components aren't just essential—they are inseparable when it comes to safe and efficient well control. Their collaboration helps crews manage unexpected pressure surges, prevent dangerous blowouts, and maintain operational stability under intense conditions. This article unpacks their coordination in real-world drilling environments, showing how timing, function, and flow regulation align to protect both people and equipment.
A blowout preventer, or BOP, is a high-pressure safety device installed on top of the wellhead. Its main task is to seal, control, and monitor the well to prevent the uncontrolled release of formation fluids—what the industry refers to as a blowout. BOPs come in several types, including annular, ram, and shear ram preventers. Each one serves a specific sealing purpose based on the condition of the drill pipe and well pressure.
When a sudden kick—an unexpected influx of formation fluid—occurs, the BOP is activated to seal the wellbore. This prevents pressure from reaching the surface. The mechanism operates either hydraulically or manually, depending on the configuration. Timing is critical. A delayed BOP activation can result in pressure breaching the surface, which can cause significant safety hazards.
While the BOP handles sealing the well, the choke manifold manages pressure once it's under control. After a well is shut in, pressure must be released in a safe, measured way. That's where the choke manifold takes over. It consists of several valves, chokes (adjustable or fixed), and piping that allow operators to control fluid flow from the well during pressure management operations such as “circulating out the kick.”
The manifold reduces pressure by throttling flow through its chokes. This lets drilling mud circulate back into the well while pushing formation fluid out in a controlled manner. Without this system, pressure could build up behind the BOP, potentially damaging the wellhead or surface equipment.
When formation pressure exceeds the hydrostatic pressure of the drilling mud, a kick can occur. This is the exact moment when the teamwork between the BOP and choke manifold begins. Here's how it unfolds:
Throughout this process, both systems stay in constant communication via the control panel. Operators monitor readings and make decisions in real-time. This combination ensures that the well doesn't over-pressurize or release gas or oil dangerously.
Choke manifolds come in different sizes and configurations, depending on the operating pressure and field requirements. A typical system includes:
This design gives operators the ability to respond quickly to pressure changes, adjust flow rates, and manage circulation without relying on the BOP alone. In some cases, backup chokes are installed to maintain redundancy.
An example of this flexibility is during a “driller's method” pressure control procedure. Mud is circulated through the drill string and out the annulus, with the choke manifold regulating flow to maintain bottom-hole pressure. Without precise control from the manifold, this process could lead to further influx or even a secondary kick.

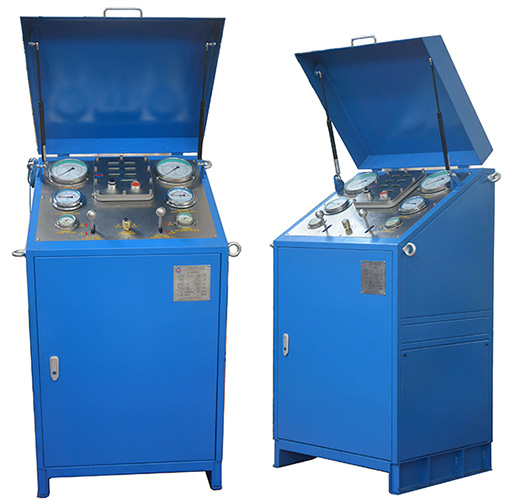

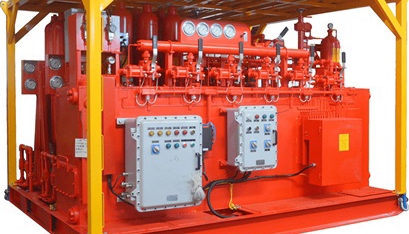

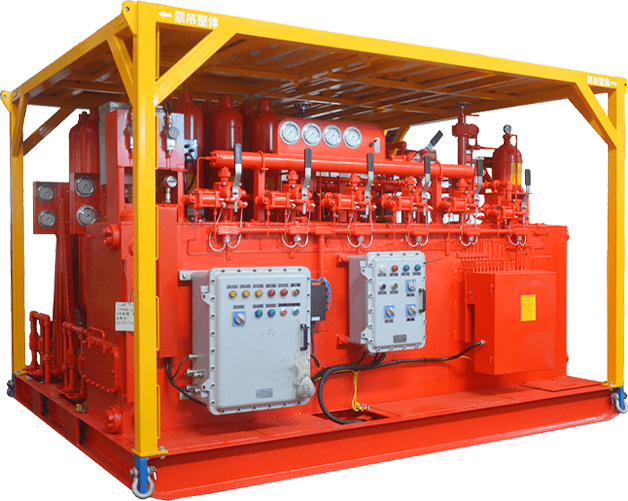

Behind both the BOP and the choke manifold sits the control panel—an integrated interface where operators activate, monitor, and adjust both systems. The control panel can be manual, remote hydraulic, or electro-hydraulic, and it links multiple components for synchronized action.
In high-spec systems, real-time data streams from pressure sensors feed into the control panel, allowing operators to see pressure readings and valve positions immediately. This interface is essential during critical operations, as it centralizes control and reduces the time it takes to respond to pressure changes.
One button on the control panel can close a ram preventer, while another adjusts a hydraulic choke. The system often includes alarms and interlocks to prevent improper sequences. These safeguards are especially important during high-pressure situations when delays or errors can escalate quickly.
The collaboration between BOPs and choke manifolds is not theoretical—it's a daily necessity on drilling rigs. Consider an offshore platform drilling through a high-pressure gas formation. A kick occurs. The BOP closes instantly. But what happens next?
Without the choke manifold, pressure would sit behind the BOP with nowhere to go. This puts stress on the BOP stack and increases the risk of equipment failure. Instead, the manifold allows crews to safely bleed off pressure, monitor gas volumes, and circulate weighted mud—all while maintaining control over the well.
Another real-world example is during a managed pressure drilling (MPD) operation. In this setup, pressure is controlled continuously using surface backpressure. BOPs are still on standby for emergencies, but the choke manifold operates actively, adjusting flow rates minute by minute. It's no longer just a backup—it's an active participant in pressure regulation.
To ensure seamless operation, both systems must be compatible in terms of pressure rating, connection size, and fluid handling capacity. BOP stacks and choke manifolds are typically rated to the same working pressure—5,000, 10,000, or 15,000 psi are common values.
Flanged connections between the BOP outlet and the choke manifold inlet must be tight and leak-proof. High-pressure piping routes the flow, and all joints are tested for integrity before operations begin. If one component is mismatched or under-rated, it creates a weak point in the system.
Valve configuration also plays a role. For example, a BOP stack with multiple ram preventers may direct flow to the manifold through different paths depending on which ram is closed. The manifold must accommodate this flexibility without loss of function.
Both the BOP and the choke manifold must undergo regular inspection and maintenance to remain reliable. This includes pressure testing, valve greasing, seal replacement, and sensor calibration.
The BOP stack is usually tested during rig-up and after any major intervention. Choke manifolds are pressure tested line-by-line, ensuring all paths are clear and functional. Operators inspect for erosion around choke orifices and check for corrosion in the valves.
Proper recordkeeping is essential. Logs track usage hours, fluid volumes handled, and maintenance intervals. A failure in either system can lead to catastrophic well control events, so preventive measures are non-negotiable.
BOPs and choke manifolds are connected not just physically but also logically. Many rigs implement automatic safety systems that trigger sequential responses when a kick is detected.
For example, a kick-detection algorithm might close the annular preventer first, then isolate the casing using a blind ram. The system then routes flow to the choke manifold and initiates a pre-set pressure control program.
These systems are often programmed with limits—maximum allowable casing pressure, minimum choke opening size, allowable pump rates. If values drift outside those limits, the system can halt operations or alert the crew instantly.
These safety interlocks act as a second layer of protection beyond human decision-making, though operator oversight remains essential.
While most think of BOPs and choke manifolds as emergency tools, they also assist in standard drilling transitions. For instance, when pulling out of the hole, swabbing can reduce bottom-hole pressure and cause a kick. Crews use the BOP to close off the well and the choke manifold to circulate fluid and stabilize pressure.
Similarly, during casing runs, cementing, or well tests, these systems ensure that pressure is managed through every stage. The goal is always the same: keep the well in balance.
This ongoing interaction shows that BOPs and choke manifolds don't just work together—they're built to operate as a unified system, supporting the well through its entire life cycle.
Blowout preventers and choke manifolds form a critical partnership in drilling operations. They seal, control, and regulate pressure with precision and speed, protecting lives and infrastructure in the world's most challenging environments. At Dongsu Petro, our choke manifold control panels and pressure control systems are designed with this essential collaboration in mind, ensuring reliability where it matters most—on the rig, under pressure, and in real time.
