When drilling into the earth's subsurface, managing pressure is not just a technical challenge—it's a matter of safety. Among the many tools used to maintain control, the choke manifold plays a crucial role in regulating wellbore pressure and preventing blowouts. But what exactly does it do, and how does it work in real-world drilling operations?

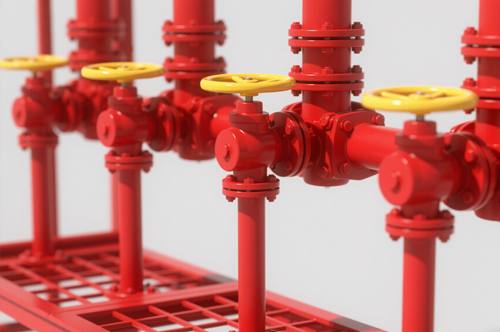

A choke manifold is a system of valves, chokes, and piping that enables controlled flow of drilling fluids from the wellbore. Installed downstream of the blowout preventer (BOP), it plays a pivotal role in well control by maintaining desired pressure levels and preventing blowouts.
The manifold typically includes a set of adjustable and fixed chokes, gate valves, pressure gauges, and flow paths that allow drilling engineers to redirect fluid from the annulus to the surface safely. By adjusting the chokes, operators can influence the pressure exerted on the formation and manage influxes of formation fluid or gas.
Its layout is generally modular, offering two or more parallel flowlines that provide operational redundancy. If one line fails or requires maintenance, the other can continue to function, ensuring uninterrupted pressure control. This redundancy is not only a safety net but also a vital design feature for maintaining operational continuity in extreme conditions.
The core function of a choke manifold lies in its ability to control backpressure. When fluid from the well returns to the surface, it carries formation pressure. Left unregulated, this could lead to uncontrolled flow—or even a blowout. The choke manifold mitigates this by throttling flow through a series of valves and chokes.
Adjustable chokes allow operators to fine-tune the outlet pressure without interrupting the flow. By changing the choke opening, engineers can manipulate the equivalent circulating density (ECD) in the wellbore, thereby stabilizing formation pressure and preventing kicks.
During a kick, the manifold facilitates a process called “driller's method” or “wait-and-weight method,” allowing controlled circulation of the kick fluid back to the surface. The choke's resistance reduces the annular pressure gradually, preventing sudden changes that could damage formation integrity.
Moreover, a well-designed choke manifold enables pressure ramping during flow checks or leak-off tests. This involves slowly increasing the bottom-hole pressure to evaluate the formation's response—an important step in safe and informed decision-making.
The system is also equipped with pressure gauges—typically to monitor casing and standpipe pressures. These gauges provide real-time feedback, allowing continuous evaluation of downhole conditions and immediate response when pressure deviates from the safe range. In modern systems, this data can be transmitted to remote control centers for constant surveillance, making the setup an integral part of digitalized drilling operations.
The choke manifold is much more than a flow control device; it's a primary line of defense in well control strategy. Its ability to manipulate wellbore pressure directly contributes to drilling safety and operational stability.

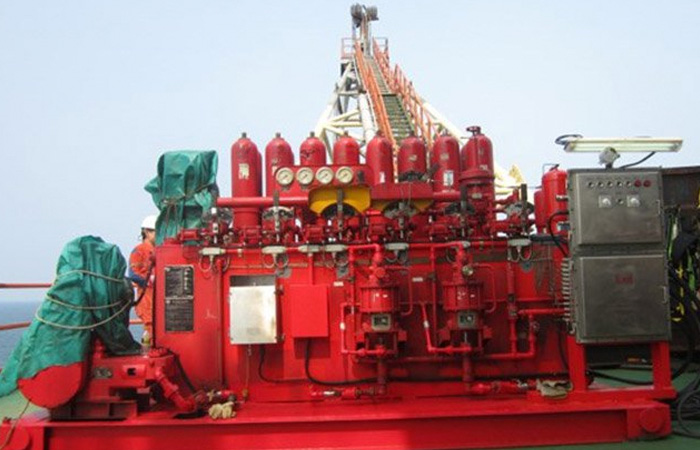

The control panel allows precise manipulation of adjustable chokes that throttle fluid flow from the annulus. By managing this outflow, operators maintain bottom-hole pressure, prevent formation damage, and mitigate kicks. The choke manifold control panel ensures operators can monitor casing and standpipe pressure in real time, making timely adjustments based on downhole conditions.
One of its most vital roles is blowout prevention. Should a formation fluid influx occur, the choke manifold lets operators control the outflow and manage the situation without needing to shut in the well immediately. This responsive pressure management reduces the risk of damage to surface equipment or loss of well control.
Moreover, modern choke manifolds are designed for high reliability in extreme environments. Whether exposed to corrosive drilling fluids, high temperatures, or intense pressures, the materials—typically API-rated steels and corrosion-resistant alloys—are built to endure. In offshore and HPHT (High Pressure, High Temperature) drilling environments, the use of duplex stainless steel or Inconel enhances lifespan and resistance to erosion.
From a design perspective, redundancy is a hallmark. Dual-path manifolds offer continuous operation even when maintenance is required on one line. Some advanced systems also support remote operation, letting engineers control the system from a safe location via hydraulic or electric actuators. These systems often integrate control panels with pre-set pressure regulation values to reduce manual errors.
Maintenance is another area where the system shines. Many components are modular, allowing quick replacement without dismantling the entire manifold. Combined with standardized configurations (e.g., those compliant with API 16C), these systems simplify training, procurement, and maintenance routines across drilling sites. Standardization also means that operators can switch between rigs with consistent interfaces and fewer retraining needs.
A choke manifold's structure is defined not just by its purpose but by the specific types of valves and configurations it uses. Among the most important components are the choke valves—both fixed and adjustable.
Fixed Chokes have a set orifice size and are typically used in steady-state operations where constant backpressure is required. They're robust and simple but lack flexibility.
Adjustable Chokes, in contrast, feature a stem or needle valve mechanism that lets operators modify the orifice size in real time. These are essential for dynamically controlling pressure during transient events such as gas kicks or formation fluid influxes.
Flow paths are typically designed with dual or triple flowline configurations. This parallel setup not only ensures redundancy but also allows different pressure zones to be managed simultaneously. For example, one path might be used for circulating out gas, while another is used for monitoring or backup.
The entire system is governed by gate valves, which provide on-off control and isolate sections of the manifold as needed. These valves are often operated manually, though high-spec models incorporate hydraulic systems for remote actuation. Hydraulic cylinders connected to a central control panel allow for quick, synchronized movements, enhancing operator safety during high-pressure incidents.
Another key distinction lies in control systems—manual vs. remote. Traditional systems use hand wheels and lever-actuated valves, which require personnel to be physically present. Modern versions, however, integrate hydraulic panels that enable remote adjustment, especially valuable in hazardous conditions or offshore rigs where safety is paramount.
Choke manifolds are deployed in a range of drilling scenarios, from conventional vertical wells to complex horizontal and high-pressure high-temperature (HPHT) environments. Regardless of the drilling strategy, the choke manifold remains a central part of the well control system.
During kick control procedures, the manifold allows for slow and controlled circulation of the kick out of the well. Operators can gradually bleed pressure without shutting in the well, avoiding pressure surges that might fracture the formation. In deeper wells where pore pressure gradients are narrow, this fine-tuned regulation is critical to avoiding differential sticking or lost circulation.
In managed pressure drilling (MPD), a choke manifold is used to precisely maintain annular pressure within narrow margins. Here, even slight variations in pressure could lead to formation damage or lost circulation. The ability to fine-tune choke openings is critical to the success of such precision-driven operations. MPD operations also benefit from automatic backpressure control via intelligent choke systems.
Offshore applications also heavily rely on choke manifolds. On deepwater rigs, where environmental conditions are harsh and kick tolerance is low, having a reliable and responsive choke manifold system is non-negotiable. These systems are often equipped with fail-safe mechanisms and remote monitoring tools to enhance both performance and safety. In ultra-deepwater wells, integration with dynamic positioning systems and riser tensioners ensures consistent operation even under wave-induced motion.
In underbalanced drilling (UBD), where the pressure in the wellbore is intentionally kept lower than formation pressure, choke manifolds play a vital role in maintaining the pressure gradient without compromising flow-back control. They allow gasified fluids or aerated mud to be returned in a controlled manner, preventing formation collapse and minimizing reservoir damage.
Choke manifolds are integral to safe and efficient drilling operations, providing precise control over wellbore pressure and acting as a frontline defense against well control incidents. From managing pressure during normal circulation to mitigating risks during kicks, their structural resilience and flexibility make them a trusted component across drilling environments. For companies seeking API-compliant, high-performance choke manifold systems built for demanding conditions, options like those offered by DONGSU Petro bring together durability, compliance, and operational intelligence.
