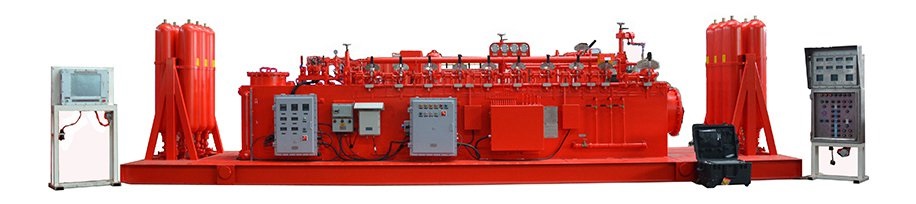

The type of control system used for a blowout preventer (BOP) can significantly affect well safety, operational efficiency, and long-term maintenance. Between electric and pneumatic systems, each offers distinct advantages depending on the field environment and technical demands. This article compares both options in detail to support better decision-making in well control system selection.

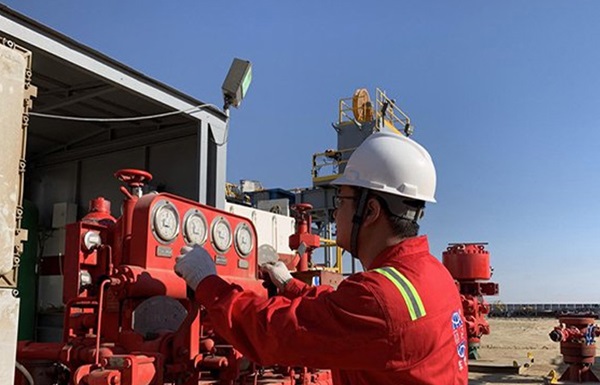

A BOP control system is the operational brain of a well control package. It converts signals—either electric or pneumatic—into hydraulic actions that activate the blowout preventers. These control systems typically include accumulator units, control panels, valves, regulators, and pressure monitoring components.
In critical moments, the system must deliver instant hydraulic energy to seal the well, preventing blowouts or uncontrolled releases of formation fluids.
The reliability of a BOP control system doesn't just depend on hydraulic capacity. It also hinges on the design and responsiveness of its control method. Electric and pneumatic actuation offer distinct advantages in different environments, and selecting the right type depends on more than just preference.

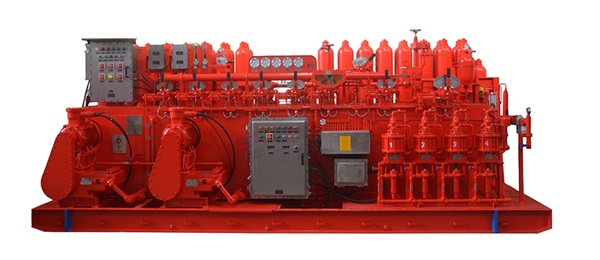

Electric BOP control systems transmit signals through wiring and electrical components. Solenoid valves are commonly used to direct hydraulic flow, and logic-based controllers process operator input.
What makes these systems attractive is their integration potential. They connect seamlessly to digital interfaces, enabling centralized remote operation and automated sequencing.
Electric systems also support real-time feedback and diagnostics, which helps operators verify valve status, accumulator pressure, and overall system health without manual inspection.
A well-designed electric system is usually built on three layers: signal initiation, relay control, and actuation. Once the operator issues a command, it passes through safety logic, energizes the appropriate solenoid, and opens a hydraulic valve.
All this happens in milliseconds. However, these systems demand stable power. Redundant battery systems or backup generators are essential, especially offshore where power failure risk is high.
Pneumatic control systems rely on compressed air to transmit commands. Instead of electrical impulses, air pressure flows through control lines to actuate valves.
Some systems use air-pilot valves that then open hydraulic ports, maintaining the chain of control through pressure changes.
Their design is comparatively simple. No electrical circuitry means no need for insulation, explosion-proof housings, or voltage converters. This makes pneumatic systems ideal for high-risk environments with explosive gases, where spark prevention is a regulatory requirement.
Compressed air systems are also easier to maintain in remote regions. Field engineers can troubleshoot leaks or valve problems using basic tools, without needing electrical schematics or diagnostic software.
That said, compressed air is slower than electricity. In applications where timing is critical, even a second of delay could make a difference. And in cold climates, moisture in the air lines may freeze, reducing responsiveness unless proper drying equipment is in place.
From a structural perspective, electric and pneumatic systems differ significantly in how they are installed and configured. To better understand these differences, the table below summarizes key aspects of installation and setup for each system.
| Aspect | Electric BOP Control System | Pneumatic BOP Control System |
|---|---|---|
| Signal Transmission Medium | Electrical wiring (shielded, grounded) | Compressed air tubing |
| Key Components | Solenoid valves, PLCs, power backup systems | Air regulators, compressors, pilot valves |
| Setup Complexity | Higher – requires trained electrical technicians | Lower – simpler layout, easier for mechanical teams |
| Time Required for Installation | Longer – wiring, logic programming, enclosure sealing | Shorter – basic mechanical setup and line routing |
| Maintenance Tools Required | Diagnostic software, multimeters | Basic mechanical tools |
| Environmental Considerations | Must protect from moisture, EMI, and voltage fluctuations | Must manage air purity and prevent moisture freezing |
| Scalability and Expansion | Easier integration with digital SCADA systems | More manual, limited automation potential |
Electric systems use insulated wiring, PLCs, and electronic control panels. These components must be sealed against moisture and dust, and wiring must be organized to avoid electromagnetic interference.
Installation is often slower and demands trained personnel. In contrast, pneumatic systems require compressors, air lines, and pressure regulators. While the tubing is easier to install, the air system must be monitored continuously for pressure consistency.
Long lines may cause pressure drops, requiring boosters or regulators closer to the end-point. In short, electric systems take longer to install but offer broader control flexibility.
Pneumatic systems are quicker to set up and more tolerant to handling, though they require consistent air supply for uninterrupted performance.
Electric BOP control systems typically deliver faster signal transmission. Electric pulses travel instantly, triggering valves within milliseconds. This makes them suitable for high-speed response environments, such as deepwater or high-pressure/high-temperature (HPHT) wells.
They also offer more control granularity. Digital input can trigger partial valve openings, modulate flow rates, or integrate with sensors for feedback loops.
Pneumatic systems, by contrast, show a slight delay. Signal travel through compressed air depends on pressure, line length, and valve design. Most field setups deliver commands within one second, which is sufficient for most land-based operations.
However, they lack precision. Once the valve opens, it opens fully—there's little modulation or variable control.
In maintenance terms, the simplicity of pneumatic systems often becomes an asset. Technicians can identify leaks, clean air filters, or replace valves with standard tools.
Components are modular and don't rely on software compatibility. This makes them ideal for field repairs in remote locations.
Electric systems require more specialized knowledge. Fault tracing often involves checking voltage continuity, PLC output, or firmware versions. While advanced diagnostics are helpful, they also demand trained staff and diagnostic tools.
That said, electric systems provide more early-warning signs. Malfunctioning relays, declining accumulator pressure, or system timeouts can trigger alarms well before total failure.
Pneumatic systems often fail silently—operators might not know something's wrong until the system is manually tested.
One of the primary factors driving selection is the operating environment. Offshore and HPHT wells tend to favor electric systems for their precision and automation capability.
Land rigs and portable units typically lean toward pneumatic systems because of ease of use and rugged durability.
Hazardous zones also shape decisions. Pneumatic systems, with no risk of electrical sparks, are inherently safer in gas-rich fields. Electric systems must use explosion-proof enclosures, Class I Div I rated components, and shielded wiring.
In freezing or humid conditions, both systems require modifications. Electric systems need heated enclosures or insulated cables.
Pneumatic systems require moisture traps and air dryers to prevent condensation buildup. Both systems can be adapted, but the choice affects maintenance routines and long-term reliability.
Often, the choice between electric and pneumatic systems depends less on technical specs and more on logistics, cost, and available infrastructure.
If a site already uses electric SCADA systems, integrating a digital BOP control platform makes sense. If compressor infrastructure is already in place, adding pneumatic actuation can save cost.
For projects requiring high control complexity or automation, electric control offers more flexibility. In remote sites with minimal support, pneumatic simplicity wins.
Procurement also plays a role. Pneumatic parts are generally more affordable and available. Electric systems involve higher upfront costs but offer longer-term value through automation and diagnostics.
When evaluating options, decision makers should weigh total ownership cost, staff training level, spares availability, and integration compatibility.
Both electric and pneumatic BOP control systems are capable of delivering safe, reliable well control. The right system is the one that best fits the rig's environment, technical capability, and operational style.
Dongsu Petro offers a full range of BOP control systems, including both electric and pneumatic solutions tailored to onshore and offshore drilling operations. For technical support or product details, reach us at sales@dongsu-petro.com or visit www.dongsu-petro.com.
