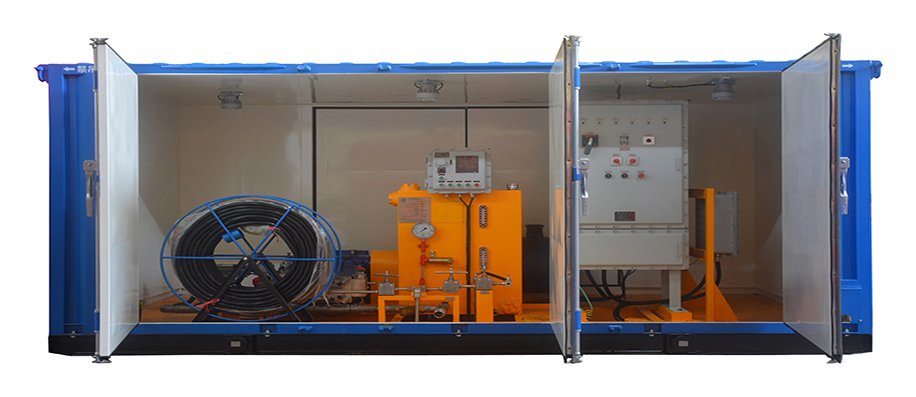

DST105-J
The pneumatic pressure testing equipment uses compressed air as power source for the pneumatic pump which supplies hydraulic pressure for hydraulic pump tester, with the hydraulic output pressure of the pump proportional to the compressed air pressure. By adjusting air source pressure, corresponding hydraulic pressure is obtained. When a balance is reached between compressed air pressure and hydraulic pressure, the air powered pump stops pressure charging and the output hydraulic pressure is stabilized at the preset level.
The pneumatic pressure testing equipment we provide plays an important in the high pressure testing device, which can effectively help engineers find equipment problems and improve the reliability and safety of the equipment. High pressure test unit equipment usually includes transformers, switchgear, circuit breakers, etc. These equipment will generate high voltage and high current during operation, so they need to undergo strict testing and inspection to ensure their reliability and safety. In these tests, air pressure testing equipment is mainly used to test the sealing performance and pressure resistance of the equipment.
Pressure sensor-signal conditioning module-controller/indicator-gas connection pipeline-calibration device, etc.
High Pressure Testing: Pneumatic pressure testing devices are designed to simulate the high pressure environments that may be encountered during oil drilling. By providing controlled high-pressure gas, it can test the performance of drilling pipes, valves, wellhead equipment, etc. under high-pressure conditions.
Safety: In the oil drilling industry, safety is paramount. Pneumatic pressure testing devices are usually equipped with safety valves and emergency shutdown systems to prevent overpressure and ensure that necessary safety measures are taken in a timely manner during the testing process.
Precise Control: These test units have sophisticated pressure control systems that allow operators to accurately set and monitor pressure during testing. This precise control helps evaluate the performance of drilling equipment under actual operating conditions.
Real-time monitoring: The pneumatic pressure testing device equipped with pressure gauges and indicators can monitor the pressure during the testing process in real time. This data is critical for evaluating the pressure stability of the device and possible leak points.
Equipped with diesel engine
MAIN SPECIFICATION FOR PNEUMATIC PRESSURE TEST UNIT QST140-J | ||||
---|---|---|---|---|
Ambient Temperature(℃) | 0-50 | |||
Operating Environment (Land/offshore) |
Land | |||
Working Pressure(MPa) | 140 | |||
Volume of Water Tank (L) | 120 | |||
Primary Pump Ratio(Air/Liqud) | 1:60 | |||
Secondary Pump Ratio (Air/Liqud) |
1:200 | |||
Flowrate(mL/stroke) Primary/Secondary |
90 / 14 | |||
Recorder(Laptop/Chart/Mechine) | Chart |
Type | Pneumatic Pumps |
Rated Input Pressure(MPa) |
Working Pressure(MPa) |
Volume of Oil Tank(L) |
Rated Explosion Pressure(MPa) |
Automatic Tecorder (set) |
|||||
1:30 (set) |
1:100 (set) |
1:60 (set) |
1:200 (set) |
1:225 (set) |
1:530 (set) |

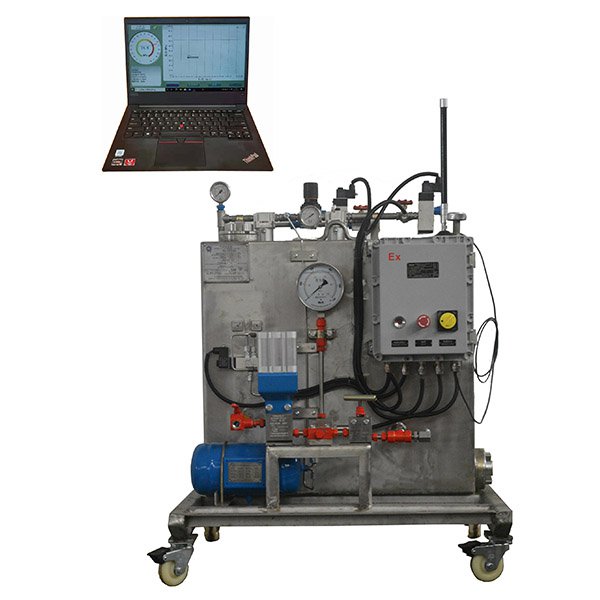

||||||
QST21 | 1 | 0.7 | 21 | 45 | |||||||
QST21-J | 1 | 0.7 | 21 | 45 | 1 | ||||||
QST35 | 1/2 | 0.58 | 35 | 100 | |||||||
QST35-J | 1/2 | 0.58 | 35 | 100 | 1 | ||||||
QST70 | 1 | 1 | 0.7 | 70 | 100 | 84 | |||||
QST70-J | 1 | 1 | 0.7 | 70 | 100 | 84 | 1 | ||||
QST140 | 1 | 1 | 0.7 | 140 | 100 | 168 | |||||
QST140-J | 1 | 1 | 0.7 | 140 | 100 | 168 | 1 | ||||
QST140A | 2 | 2 | 0.7 | 140 | 100 | 168 | |||||
QST140A-J | 2 | 2 | 0.7 | 140 | 100 | 168 | 1 | ||||
QST140B | 1 | 1 | 0.7 | 140 | 168 | ||||||
QST140B-J | 1 | 1 | 0.7 | 140 | 168 | 1 | |||||
QST140C | 1 | 1 | 0.7 | 140 | 100 | 168 | |||||
QST140C-J | 1 | 1 | 0.7 | 140 | 100 | 168 | 1 | ||||
QST200 | 1 | 1 | 0.9 | 200 | 100 | 225 | |||||
QST200-J | 1 | 1 | 0.9 | 200 | 100 | 225 | 1 | ||||
QST200A | 2 | 2 | 0.9 | 200 | 100 | 225 | |||||
QST200A-J | 2 | 2 | 0.9 | 200 | 100 | 225 | 1 | ||||
QST200-JK | 1 | 1 | 0.9 | 200 | 100 | 225 | |||||
QST250-J | 1 | 0.47 | 250 | 1 |
